Description:CAZ-AF144 are made from selected asbestos fiber, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.

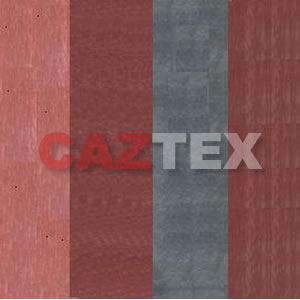

Asbestos Rubber Sheet
PROPERTIES & APPLICATION:
|
Item |
Style AF144- |
|
300 |
350 |
400 |
450 |
|
Tensile strength¡ÝMpa |
9 |
12 |
15 |
19 |
|
Aging
coefficient |
0.9 |
0.9 |
0.9 |
0.9 |
|
Loss on ignition
¡Ü% |
30 |
30 |
28 |
28 |
|
Compressibility
¡Ý% |
12¡À5 |
12¡À5 |
12¡À5 |
12¡À5 |
|
Recovery
¡Ý% |
40 |
40 |
45 |
45 |
|
Density g/cm3 |
1.6~2.0 |
|
Tmax: ¡æ |
300 |
350 |
400 |
450 |
|
Pmax: Mpa |
3.0 |
4.0 |
5.0 |
6.0 |
|
Resistance
to media |
Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure. |
|
Dimension |
1500x4000mm£»1270x3810mm
Thickness: 0.5~5mm |
Grade 150, 250 on request
Available colour: Black, grey, red, blue etc.
Available with tin steel, copper, SS304 etc. wire mesh insertion(Style: AF144I)
Also available with anti-stick or graphite coating (style:AF144S and AF144G)
|
