Description:CAZ-AF140N Non-asbestos beater sheet is made from synthetic emulsion, plants fiber and filling material. The production is used for position of lubrication system, which has the property of good compressibility and coefficient of resilience, in addition, the inside of caz can properly swell to meet oil, that make up of the shortcoming that procession machining precision is not enough, which affected self-sealing.

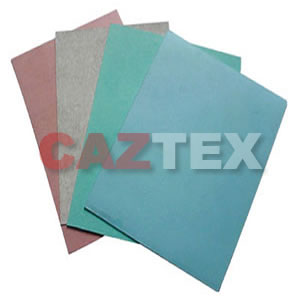

Non-asbestos Beater Sheet
CAZ-AF140V is Vulcanized non-asbestos beater sheet, It has smooth face and high density compared with Style CAZ-AF140N.
CAZ-AF140NI is asbestos sheet reinforced with tanged carbon steel, normal as caz materials for explosion engine cylinder cazs and chemical cazs.
|
Item |
Unit |
AF140N |
AF140NV |
|
Density |
g/cm3 |
0.9~1.1 |
1.2~1.4 |
|
Tensile strength |
¡ÝMpa |
12.7 |
|
Compressibility |
% |
15¡À5 |
|
Recovery |
¡Ý% |
45 |
|
Stress relaxation |
¡Ü% |
35 |
|
Weight increase (in oil) |
¡Ü% |
35 |
|
Thickness increase (in oil) |
¡Ü% |
15 |
|
Dimension |
500x1000mm,1000x1000mm,1000x1500mm |
|
Thickness |
0.4mm~2.0mm |
|
Color |
Grey, Black, White, Other color on request |
|
