Description:It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200 degree C.

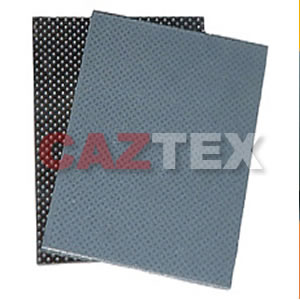

Asbestos Beater Sheet
CAZ-AF140V is vulcanized asbestos beater sheet, It has smooth face and high density compared with Style CAZ-AF140V.
CAZ-AF140I is asbestos sheet reinforced with tanged carbon steel, normal as caz materials for explosion engine cylinder cazs and chemical cazs.
|
Item |
Style |
|
AF140 |
AF140V |
|
Density g/cm3 |
0.9~1.1 |
1.2~1.4 |
|
Tensile strength ¡ÝMpa |
2.5 |
5 |
|
Compressibility ¡Ý% |
40¡À7 |
20¡À5 |
|
Recovery ¡Ý% |
20 |
40 |
|
Stress relaxation ¡Ü% |
30 |
30 |
|
In 20# aviation oil,
150¡æ, 30min |
Oil absorption |
¡Ü50% |
¡Ü30% |
|
Thick. increase |
¡Ü6% |
¡Ü12% |
|
In water ,15~30¡æ, 5h |
Thick. increase |
¡Ü6% |
¡Ü12% |
|
Dimension |
500x1000mm,1000x1000mm,1000x1500mm |
|
Thickness |
0.4mm~2.0mm |
|
Color |
Grey, Black, White, Other color on request |
|
