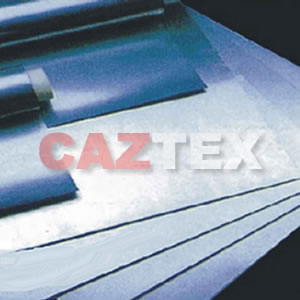

Expanded Graphite Sheet

Expanded Graphite Sheet

Item:CAZ-EG540
PDF:no !pfd

Specification:

Description:CAZtex Pure Expanded graphite sheets & rolls are selected from the high purity natural flake graphite. They are made through the advanced chemical treatment and mechanical procedure without fibers, binders or other additives. It offer excellent sealing capabilities under extreme conditions with a longer life and less maintenance. Normal reinforced with tanged or smooth metallic foil for caz mataerials.

Graphite Sheet

Properties:

Item
Nuclear grade
Industrial grade
Tolerance of Density   g/cm3
¡À0.05
¡À0.06
Carbon Content       ¡Ý%
99.5
98
Tensile strength       Mpa
5
4
Compressibility       ¡Ý%
30
30
Recovery             ¡Ý%
15
15
Sulphur Content       ¡Ü%
700
1000
Chlorine Content      ¡Ü%
25
50
Stress relaxation rate  %
10
10
Lgnition loss          ¡Ü%
0.5
2.0











Forms of supply:
Item
Sheets
Rolls
Density  g/cm3
1.0
1.0
Length
1000, 1500mm
30~100m
Width mm
1000, 1500
1000~1500
Thickness mm
0.5~3
0.2~1.0







Special density, thickness, grade and metallic materials on request.
