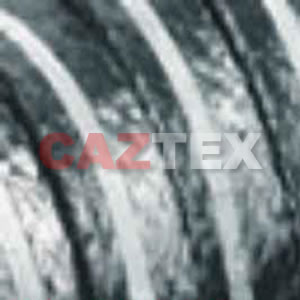

Description:Graphite Tube is a braided strip, made of expanded graphite yarn, normal with self adhesive on one side.
Inconel wire reinforcement on request. It shows good thermal resistance and high elasticity.
Graphite Tube
Application:
To be used as a endless caz-strip for vessels and flanges of extreme uneveness, high temperature and high pressure.
For Heat-Exchangers, boilers, pipes, doors, covers, ect. Easy handling and installation to every size, also used as a universal-caz during revisions, ect.
Service Limits:
Temperature: 200 +550¡ã C
PH: 0-14
max. pressure: 100 bar
200 bar (metal wire reinforced)
Forms of Supply:
Sizes:
12,7 x 3,2 mm; 25,4 x 6,4 mm; 31,8 x 6,4 mm; 38 x 6,4 mm
2kg/roll
|
