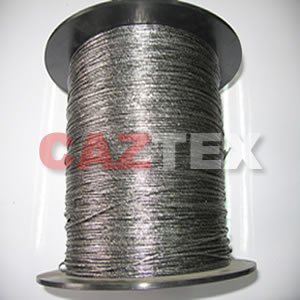

Expanded Graphite Yarn

Expanded Graphite Yarn

Item:CAZ-EG500
PDF:no !pfd

Specification:

Description:In order to manufacture different kinds of reinforced flexible graphite yarns to be used for making different kinds flexible graphite packings, we use flexible graphite as basic material, mixing with natural fiber,synthetic fiber,metal alloy wire (respectively) and proper binding agent,then through specially designed technological process. The packing made of these flexible graphite yarns reinforced by different kinds of fibers and metal alloy wires, are suitable for sealing under different media, circumstance, temperature and pressure.

Graphite Yarn

Specs£º2g/m, 3g/m, 5g/m, 10g/m

Technical data:
  Temperature
 -200¡æ-600¡æ
Sulphur  content
<1100ppm
Pressure
 3-50Mpa
Chlorine content
<50ppm
VeIocity
 0-20m/s
Carbon content
99%
PH rang
 0-14
Ash content
<0.8%

Types of reinforcing fiber for flexible graphite yarn
L1
graphite yarn reinforced by cotton fiber
L2
graphite yarn reinforced by cotton fiber+stainless steel wire
L3
graphite yarn reinforced by cotton fiber+inconel wire
L4
graphite yarn reinforced by glass fiber
L5
graphite yarn reinforced by glass fiber+stainless steel wire
L6
graphite yarn reinforced by glass fiber+inconel wire
L7
graphite yarn reinforced by cotton fiber+304 wire
L8
graphite yarn reinforced by carbon fiber
L9
graphite yarn reinforced by cotton fiber+carbon fiber
L10
graphite yarn reinforced by cotton fiber+kevlar fiber
L11
graphite yarn reinforced by outside-braided inconel wire+cotton fiber
L12
graphite yarn reinforced by outside-braided inconel wire+glass fiber
Other combination can be supplied on demand of different customers.
