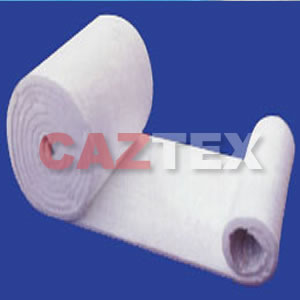

Ceramic Fiber Blanket

Ceramic Fiber Blanket

Item:CAZ-CF344
PDF:no !pfd

Specification:

Description:Ceramic fiber blanket is a new kind fire-resistant heat insulation material with white color, standard dimension and the function of fire-resistance, heat insulation and heat preservation. Without any bonding agent, good tensile strength, tenacity and fiber structure can be kept while using under the normal and oxidation condition. Temperature level is 1050-1430¡æ.

Ceramic Fiber Blanket

Characteristics:
Low thermal conductivity and low heat storage. Excellent thermal stability and thermal shock resistance. Excellent erosion resistance
Excellent heat insulation,fire proofing and procssing function.
Application Range:
Industrial furnace,heaters,inside walll of hige temperature rube. Electric power furnace,nuclear power station and heat insulation.
Fire proofing and heat insulation of high building.


Product name
Item
COM
ST
HP
HAA
HZ
Categorize the temperature(¡æ)
1100
1260
1260
1360
1430
The work temperature(<¡æ)
1000
1050
1100
1200
1350
The color
white
pure
pure
pure
pure
Physical volume density
(kg/m3)
96
128
96
128
96
128
128
160
128
160
Permanent line constringency (%)
( heat preservation 24 hours, physical volume density 128/ m3)
£­4
(1000¡æ)
£­3
(1000¡æ)
£­3
(1100¡æ)
£­3
(1250¡æ)
-3
(1350¡æ£©
Each temperature descend transmit
 heat the coefficient ( w/ m.k)
( physical volume density 128 kgs/ m3)
0.09(400¡æ)
0.16(800¡æ)
0.09(400¡æ)
0.16(800¡æ)
0.09(400¡æ) 0.16(800¡æ)
0.20(1000¡æ)
0.12(600¡æ)
0.20(1000¡æ)
0.16(800¡æ)
0.20(1000¡æ)
The anti- pulls the strength( MPa)
( Physical volume density 128 kgs/ m3)
0.04
0.04
0.04
0.04
0.04
The chemistry composition(%)
AL2O3
40-44
45-46
47-49
52-55
39-40
AL2O3+SIO2
95-96
96-97
98-99
99
-
AL2O3+SIO2+ZrO2
-
-
-
-
99
ZrO2
-
-
-
-
15-17
Fe2O3
<1.2
<1.0
0.2
0.2
0.2
Na2O+K2O
¡Ü0.5
¡Ü0.5
0.2
0.2
0.2
SIZE(mm)
In common use specification:7200¡Á610¡Á10-50
Other specifications manufacture according to the customer request.
